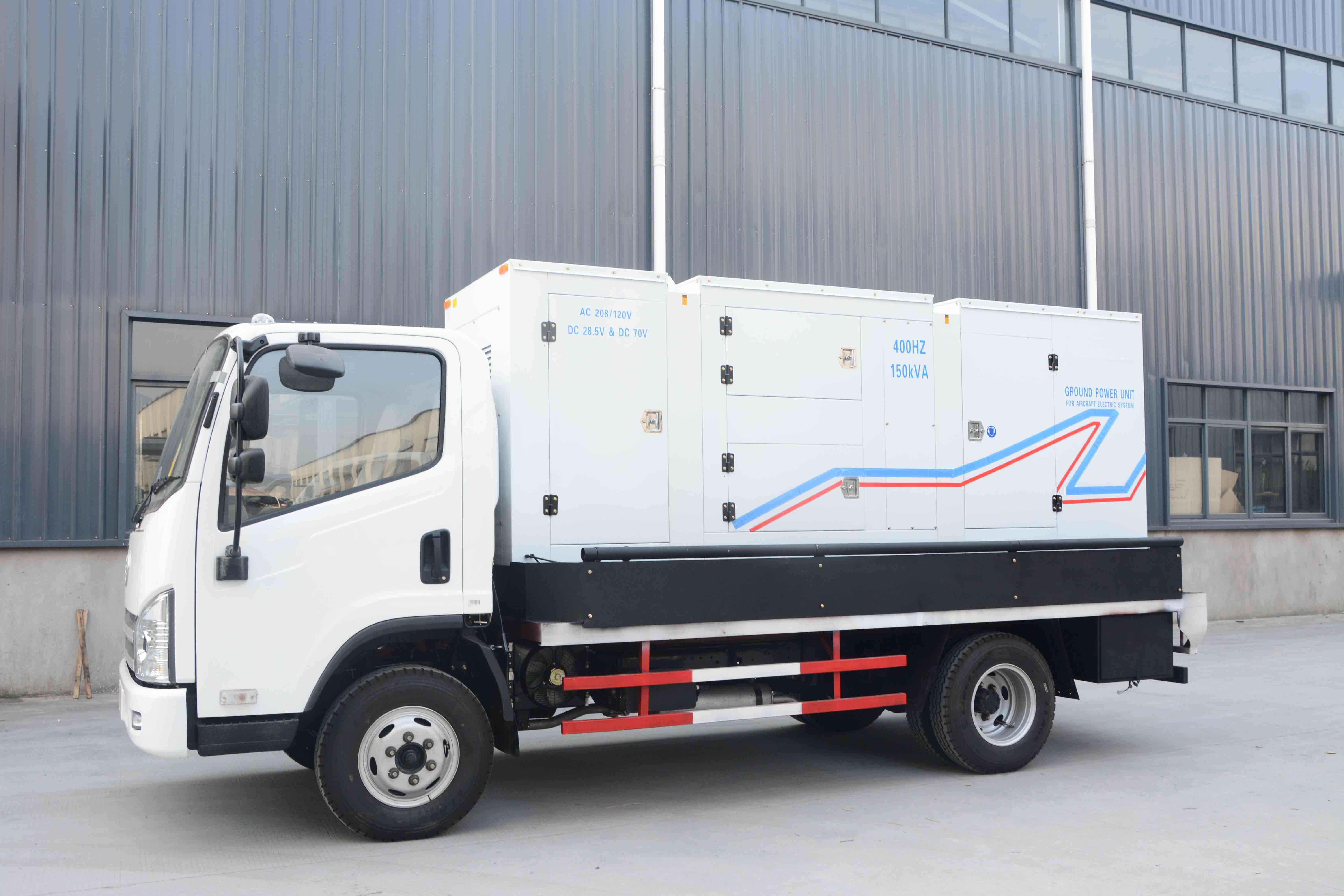

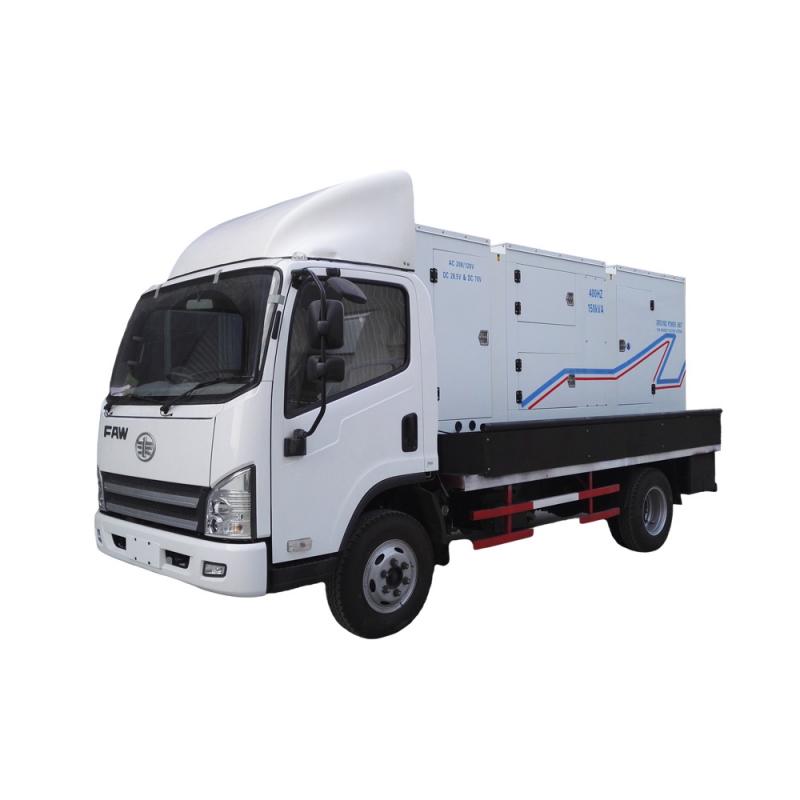

Ground Power Unit (GPU)

This 350kVA Cummins generator with NTA855-G1B engine and a top-tier Stamford HCI 444 ES brushless alternator. An Automatic Voltage Regulator (AVR) is also onboard, ensuring a consistent output voltage even under heavy loads. Contact us right now to acquire factory wholesale price   Engine Model: NTA855-G1B Engine Type: 6-cylinder inline, four-stroke Displacement: 14 liters Bore and Stroke: 140 mm x 152 mm  Fuel System: PT fuel system Cooling System: Water-cooled Turbocharger: Yes Aftercooler: Yes Governing System: Electronic  Starting System: Electric start Alternator Type: Brushless, self-excited Control Panel: Deepsea/ Smartgen / ComAp Voltage Regulation: Automatic voltage regulation (AVR) Enclosure: Soundproof or weatherproof enclosure (optional) Fuel Tank: Integrated fuel tank (optional)

Model Standby Power  Prime Power Engine Model Dimension Weight Datasheet kVA kW kVA kW LXWXH(MM) KG A-DE22 22 18 20 16 BFM3 G1 2150×1000×1440 1050 Download A-DE33 33 26 30 24 BFM3 G2 2150×1000×1440 1120 Download A-DE44 44 35 40 32 BFM3T 2500×1080×1560 1280 Download A-DE55 55 44 50 40 BFM3C 2500×1080×1560 1360 Download A-DE83 83 53 60 48 BF4M2012 2800×1130×1600 1400 Download A-DE87 87 66 75 60 BF4M2012C G1 2800×1130×1600 1400 Download A-DE100 100 80 91 73 BF4M2012C G2 2800×1130×1600 1450 Download A-DE110 110 88 100 80 BF4M1013EC G1 3200×1130×1720 1720 Download A-DE123 123 99 112 90 BF4M1013EC G2 3200×1130×1720 1780 Download A-DE143 143 114 130 104 BF4M1013FC 3200×1130×1720 1800 Download A-DE176 176 140 160 128 BF6M1013EC G1 3200×1130×1720 2200 Download A-DE198 198 158 180 144 BF6M1013EC G2 3600×1330×2190 2560 Download A-DE207 207 165 188 150 BF6M1013FC G2 3600×1330×2190 2560 Download A-DE220 220 176 200 160 BF6M1013FC G3 3600×1330×2190 2680 Download A-DE275 275 220 250 200 TCD8.0 3600×1330×2190 2960 Download                   A-DE250 250 200 225 180 BF6M1015C-LA GA 3988x1400x2250 3800 Download A-DE275 275 220 250 200 BF6M1015C-LA G1A 3988x1400x2250 3840 Download A-DE300 300 240 275 220 BF6M1015C-LA G2A 3988x1400x2250 3880 Download A-DE350 350 280 313 250 BF6M1015C-LA G3A 3988x1400x2250 3910 Download A-DE375 375 300 344 280 BF6M1015C-LA G4 4388*1650*2350 4150 Download A-DE412 412 330 375 300 BF6M1015CP-LA G 4388*1650*2350 4180 Download A-DE475 475 380 438 350 BF8M1015C-LA G1A 4588x1600x2500 4250 Download A-DE500 500 400 450 360 BF8M1015C-LA G2 4588x1600x2500 4300 Download A-DE550 550 440 500 400 BF8M1015CP-LA G2 4588x1600x2500 4350 Download A-DE588 588 470 538 430 BF8M1015CP-LA G4 4588x1600x2500 4300 Download A-DE600 600 480 575 450 BF8M1015CP-LA G5 4588x1600x2500 4400 Download A-DE750 750 600 675 550 HCI12V132ZL-LAG2 5280x2100x2500 6250 Download A-DE825 825 660 750 600 HCI12V132ZL-LAG2 5280x2100x2500 6310 Download                   AIR COOLED A-DE14A 14  11  13  10  F2L912 AT2008*900*1130 550 Download A-DE28A 28  22  25  20  F3L912 AT2188*900*1280 630 Download A-DE33A 33  26  30  24  F4L912 AT2188*900*1280 700 Download A-DE41A 41  33  38  30  F4L913 AT2288*950*1280 830 Download A-DE44A 44  35  40  32  F4L912T AT2288*950*1280 840 Download A-DE55A 55  44  50  40  F6L912 AT2688*1080*1450 850 Download A-DE63A 63 50  56  45  F6L913 AT2688*1080*1450 1020 Download A-DE70A 70  55  63  50  F6L912T AT2688*1080*1450 1080 Download A-DE70A 70  55  63  50  BF4L913 AT2688*1080*1450 1080 Download A-DE103A 103  83  94  75  BF6L913ADG AT2938*1080*1690 1230 Download A-DE132A 132  106  120  96  BF6L913CADG AT2938*1080*1690 1300 Download A-DE138A 138  110  125  100  F8L413F AT3288*1130*1850 1520 Download A-DE165A 165  132  150  120  BF8L513 AT3288*1130*1850 1880 Download A-DE206A 206  165  188  150  BF8L513C AT3588*1180*2150 2300 Download

Standard Equipment   12 volt DC start/charging  Automatic engine shut down for low oil & high coolant temperature.  Fuel filter Fuel transfer pump Air intake silencer/cleaner Four-point isolation motor mounts.  Heavy-duty steel mounting frame. Single bearing generator Brushless exciter   Optional Equipment   Remote start / stop panel / 20ft extension harness Electric fuel pump Wet exhaust manifold Wet turbocharger Circuit breaker

Standard Features   1. With brand new Weichai engine WP4.1CD66E200, ECM governor 2. 24 volt DC start/charging  3. 12000hours overhaul period  4. Automatic engine shut down for low oil & high coolant temperature.  5. Heavy-duty steel mounting frame. 6. Single bearing marine standard alternator   Optional Equipment   1. Remote start / stop panel / 20ft extension harness 2. Electric fuel pump 3. Wet exhaust manifold 4. Wet turbocharger 5. Circuit breaker

4-stroke, air-cooled, single or double cylinder 50Hz-60Hz 2kW-11kW 110V-400V Electric start Single phase/three phase Easy movable by a single person CE, ISO9001, ISO14001, ISO8528

Faw Generator Features   1. Low fuel consumption 2. Good quality engine and alternator 3. Fast delivery. 4. The generator set is mounted on a heavy-duty steel skid type base– frame with anti-vibration mounting pads. 5. Use a high standard of sponge to make it soundproof. 6. The canopy design is user-friendly and easy to maintain. 7. Pre and after-sales services are provided. 8. 365 days, 24 hours after-sale service

Assembly by Cummins brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc. Heavy-duty steel as the base plate with 8 hours operation fuel tank.  The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow. Vibration damper between engine/alternator and base frame 3-pole circuit breaker. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc. Full range protect function and alarm shutdown feature Comply with ISO8528 national standard and ISO9001 quality standard.
