Equipped with a high-performance Cummins engine, this generator delivers exceptional performance and durability. With its compact design and advanced features, it provides uninterrupted power supply to a wide range of applications, including commercial buildings, manufacturing facilities, and data centers. The 150kVA Cummins Generator offers excellent fuel efficiency, low emissions, and easy maintenance, making it a cost-effective and environmentally-friendly choice. Trust in its robust construction and industry-leading technology to provide reliable power whenever you need it.
Item no.:
A-C165Payment:
TT/LCProduct origin:
ChinaColor:
CustomizedLead Time:
30-35 daysConfiguration Overview:

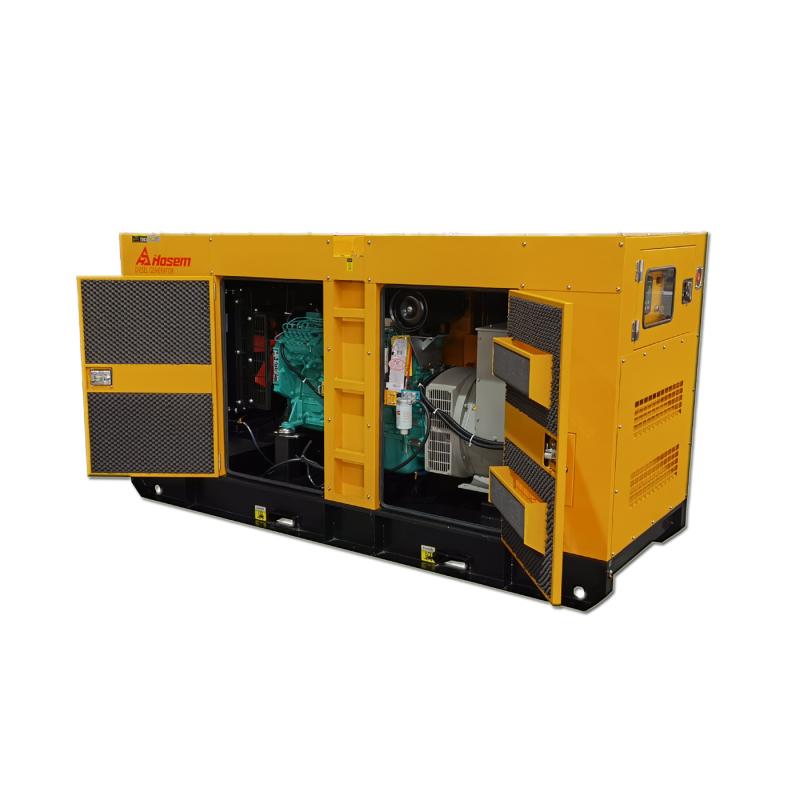

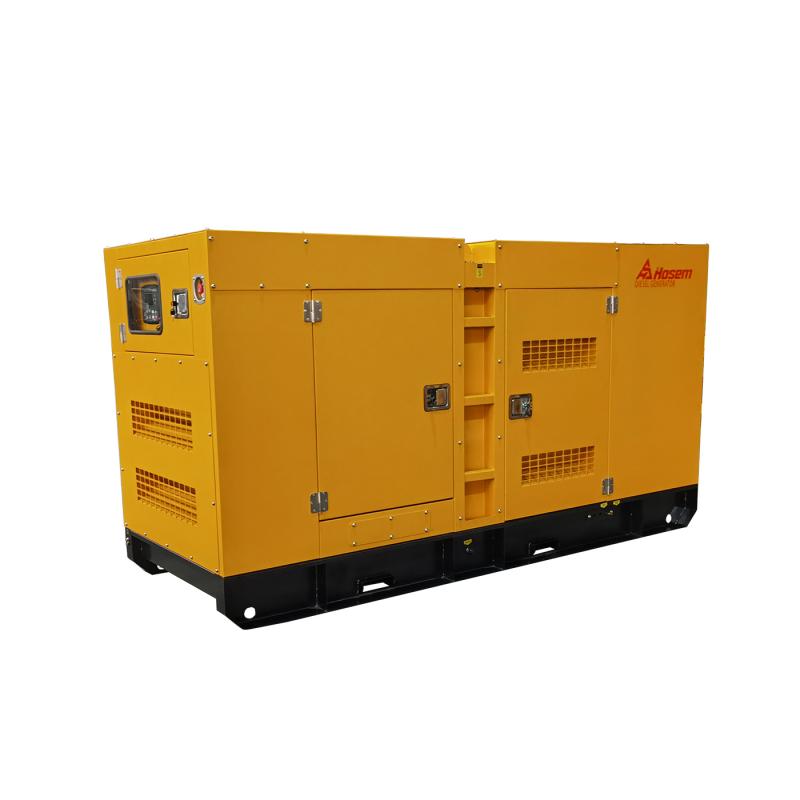

The 150kVA Cummins generator is powered by the reliable 6BTAA5.9-G12 engine, delivering consistent and efficient power output. This generator is designed to meet your power requirements with confidence.
Engine: Cummins 6BTAA5.9-G12
Alternator: Stamford, Leroy Somer and Hosem
Controller: Deepsea or Smartgen
Base Frame: Heavy-duty fabricated steel frame
Start System: Maintenance-free battery
Vibration Isolation: Anti-vibration pads
Enclosure: Open type, silent type, or super silent type
Cooling System: Radiator with fan
Fuel Tank: Integrated fuel tank for extended runtime
Circuit Breaker: Delixi, Schneider or ABB brand
Protection System: Low oil pressure, high water temperature, over-speed, and over-current protection etc.
Control Panel: User-friendly interface with digital display and control functions
Structure: High-strength steel base frame for stability and durability
Certification: CE, ISO9001, ISO14001
With its robust configuration and high-quality components, the 150kVA Cummins generator ensures reliable and uninterrupted power supply for various applications. Whether for commercial, industrial, or standby power needs, this generator is designed to deliver exceptional performance and meet your power demands efficiently.
Why Choose Hosem Power?
1. Hosem Power engaged in the generator area for 15 years, we have rich experience in R&D and manufacturing generator sets.
2. Every generator will be tested strictly before shipment, including:
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.
3. production is submitted to ISO8528 and CE certification, and quality is certified by ISO9001 Management System to guarantee high-quality products and service.
FAQ
Q: What's your warranty?
A: All our products we offer one year warranty or 1000 hours which comes first.
Q: What's your delivery time?
A: Standard product 20 days - 35 days. Customized product 40 days.
Q: Can we add our logo to products?
A: Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q: Can we customize the product?
A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system
Q: What certifications are for your gen sets?
A: ISO9001-2008, ISO14001-2004, CE, SASO, SONCAP, RETIE, etc.
| Model | Standby Power | Prime Power | Engine Model | Dimension Silent Type | Weight | Datasheet | ||
| kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
| A-C22-1 | 22 | 18 | 20 | 16 | 4B3.9-G1 | 2300x 900x1250 | 765 | Download |
| A-C22-2 | 22 | 18 | 20 | 16 | 4B3.9-G2 | 2300x 900x1250 | 765 | Download |
| A-C28-1 | 28 | 22 | 25 | 20 | 4B3.9-G1 | 2300x 900x1250 | 765 | Download |
| A-C28-2 | 28 | 22 | 25 | 20 | 4B3.9-G2 | 2300x 900x1250 | 765 | Download |
| A-C44-1 | 44 | 35 | 40 | 32 | 4BT3.9-G1 | 2300x 900x1250 | 770 | Download |
| A-C44-2 | 44 | 35 | 40 | 32 | 4BT3.9-G2 | 2300x 900x1250 | 770 | Download |
| A-C55 | 50 | 40 | 55 | 50 | 4BT3.9-G2 | 2300x 900x1250 | 780 | Download |
| A-C60 | 60 | 50 | 55 | 45 | 4BTA3.9-G2 | 2450x900x1250 | 824 | Download |
| A-C72 | 72 | 57 | 65 | 52 | 4BTA3.9-G2 | 2450x900x1250 | 824 | Download |
| A-C88 | 88 | 70 | 80 | 63 | 4BTA3.9-G11 | 2450x900x1250 | 980 | Download |
| A-C100 | 100 | 77 | 90 | 70 | QSB3.9-G3 | 2450x900x1250 | 980 | Download |
| A-C110-1 | 110 | 88 | 100 | 80 | 6BT5.9-G1 | 2900×1080×1500 | 1150 | Download |
| A-C110-2 | 110 | 88 | 100 | 80 | 6BT5.9-G2 | 2900×1080×1500 | 1185 | Download |
| A-C121 | 121 | 96 | 110 | 87 | 6BT5.9-G2 | 2900×1080×1500 | 1185 | Download |
| A-C138 | 138 | 110 | 125 | 100 | 6BTA5.9-G2 | 2900×1080×1500 | 1280 | Download |
| A-C150-1 | 150 | 119 | 136 | 109 | QSB5.9-G3 | 3200×1080×1500 | 1350 | Download |
| A-C150-2 | 150 | 119 | 136 | 109 | 6BTAA5.9-G2 | 3200×1080×1500 | 1280 | Download |
| A-C175 | 175 | 140 | 160 | 127 | 6BTAA5.9-G12 | 3200×1080×1500 | 1300 | Download |
| A-C200-1 | 203 | 163 | 185 | 148 | 6CTA8.3-G1 | 3200×1080×1500 | 1600 | Download |
| A-C200-2 | 203 | 163 | 185 | 148 | 6CTA8.3-G2 | 3200×1080×1500 | 1550 | Download |
| A-C210 | 210 | 167 | 190 | 152 | QSB6.7-G4 | 3500×1126×1700 | 1550 | Download |
| A-C220 | 220 | 176 | 200 | 160 | 6CTAA8.3-G2 | 3500×1126×1700 | 1700 | Download |
| A-C275-1 | 275 | 220 | 250 | 200 | MTA11-G2A | 3900×1300×1900 | 2750 | Download |
| A-C275-2 | 275 | 220 | 250 | 200 | MTA11-G2 | 3900×1300×1900 | 2750 | Download |
| A-C275-3 | 275 | 220 | 250 | 200 | NTA855-G1 | 3900×1300×1900 | 3010 | Download |
| A-C275-4 | 275 | 220 | 250 | 200 | 6LTAA8.9-G2 | 3500×1126×1700 | 1900 | Download |
| A-C286 | 286 | 229 | 260 | 208 | 6LTAA8.9-G3 | 3500×1126×1700 | 2500 | Download |
| A-C290 | 290 | 232 | 260 | 208 | QSL8.9-G4 | 3500×1126×1700 | 1900 | Download |
| A-C300 | 300 | 240 | 275 | 220 | NTA855-G1A | 3900×1300×1900 | 3010 | Download |
| A-C300 | 300 | 240 | 273 | 218 | 6LTAA9.5-G3 | 3500×1126×1700 | 2500 | Download |
| A-C344-1 | 344 | 275 | 313 | 250 | MTAA11-G3 | 3900×1300×1900 | 2750 | Download |
| A-C350 | 350 | 280 | 313 | 250 | NTA855-G1B | 3900×1300×1900 | 2900 | Download |
| A-C344-3 | 344 | 275 | 313 | 250 | NTA855-G2 | 3900×1300×1900 | 2900 | Download |
| A-C344-4 | 344 | 275 | 313 | 250 | 6LTAA9.5-G1 | 3500×1126×1700 | 2750 | Download |
| A-C375 | 375 | 300 | 341 | 273 | NTA855-G2A | 3900×1300×1900 | 2950 | Download |
| A-C385 | 385 | 308 | 350 | 280 | NTA855-G4 | 3900×1300×1900 | 3000 | Download |
| A-C408 | 408 | 326 | 370 | 296 | QSZ13-G6 | 3420×1150×2190 | 3140 | Download |
| A-C413-1 | 413 | 330 | 375 | 300 | NTAA855-G7 | 3900×1300×1900 | 2800 | Download |
| A-C413-2 | 413 | 330 | 375 | 300 | KTA19-G2 | 3580×1277×2065 | 3950 | Download |
| A-C424-1 | 424 | 340 | 385 | 310 | 6ZTAA13-G3 | 4350×1450×2180 | 3220 | Download |
| A-C424-2 | 424 | 340 | 385 | 310 | 6ZTAA13-G3 | 4350×1450×2180 | 3220 | Download |
| A-C440 | 440 | 352 | 400 | 320 | 6ZTAA13-G3 | 4350×1450×2180 | 3220 | Download |
| A-C450 | 450 | 360 | N/A | N/A | NTAA855-G7A | 3000×1050×1780 | 2900 | Download |
| A-C456 | 456 | 365 | 415 | 332 | QSZ13-G7 | 3420×1150×2190 | 3140 | Download |
| A-C484 | 484 | 387 | 440 | 352 | 6ZTAA13-G2 | 4350×1450×2180 | 3220 | Download |
| A-C495-1 | 495 | 396 | 450 | 360 | KTA19-G3 | 4700×1800×2380 | 2900 | Download |
| A-C495-2 | 495 | 396 | 450 | 360 | 6ZTAA13-G4 | 4350×1450×2180 | 3220 | Download |
| A-C495-3 | 495 | 396 | 450 | 360 | QSZ13-G2 | 4700×1800×2380 | 3220 | Download |
| A-C511 | 511 | 409 | 465 | 372 | QSZ13-G5 | 4700×1800×2380 | 3220 | Download |
| A-C550-1 | 550 | 440 | 500 | 400 | KTA19-G3A | 4700×1800×2380 | 4250 | Download |
| A-C550-2 | 550 | 440 | 500 | 400 | KTA19-G4 | 4700×1800×2380 | 4300 | Download |
| A-C560 | 560 | 448 | 510 | 408 | QSZ13-G3 | 4700×1800×2380 | 3220 | Download |
| A-C575 | 575 | 462 | 525 | 420 | KTAA19-G5 | 4700×1800×2380 | 4550 | Download |
| A-C633 | 633 | 506 | 575 | 460 | KTAA19-G6 | 4700×1800×2380 | 4550 | Download |
| A-C650 | 650 | 520 | N/A | N/A | KTA19-G8 | 4700×1800×2380 | 4550 | Download |
| A-C688-1 | 688 | 550 | N/A | N/A | KTAA19-G6A | 4700×1800×2380 | 4700 | Download |
| A-C688-2 | 687 | 550 | 625 | 500 | KT38-G | 6050×2438×2591 | 6000 | Download |
| A-C784 | 784 | 627 | 713 | 570 | KTA38-G1 | 6050×2438×2591 | 6150 | Download |
| A-C800 | 800 | 640 | 725 | 580 | KT38-GA | 6050×2438×2591 | 6400 | Download |
| A-C825 | 825 | 660 | 750 | 600 | KTA38-G2 | 6050×2438×2591 | 6600 | Download |
| A-C880 | 880 | 704 | 800 | 640 | KTA38-G2B | 6050×2438×2591 | 6700 | Download |
| A-C1000 | 1000 | 800 | 910 | 728 | KTA38-G2A | 6050×2438×2591 | 6850 | Download |
| A-C1100 | 1100 | 880 | 1000 | 800 | KTA38-G5 | 6050×2438×2591 | 7150 | Download |
| A-C1250 | 1250 | 1000 | N/A | N/A | KTA38-G9 | 6050×2438×2591 | 7250 | Download |
| A-C1375 | 1375 | 1100 | 1250 | 1000 | KTA50-G3 | 12192×2438×2591 | 9140 | Download |
| A-C1513 | 1513 | 1210 | 1375 | 1100 | KTA50-G8 | 12192×2438×2591 | 9400 | Download |
| A-C1650 | 1650 | 1320 | 1500 | 1200 | KTA50-GS8 | 12192×2438×2591 | 9600 | Download |
| Model | Standby Power | Prime Power | Engine Model | Dimension (Silent Type) | Weight | Datasheet | ||
| kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
| A-C28H | 28 | 22 | 25 | 20 | 4B3.9-G11 | 2300x 900x1250 | 765 | Download |
| A-C40H | 40 | 32 | 36 | 29 | 4BT3.9-G12 | 2300x 900x1250 | 770 | Download |
| A-C50H | 50 | 40 | 45 | 36 | 4BT3.9-G2 | 2300x 900x1250 | 790 | Download |
| A-C60H | 60 | 48 | 55 | 44 | 4BTA3.9-G2 | 2300x 900x1250 | 824 | Download |
| A-C75H | 75 | 60 | 68 | 55 | 4BTA3.9-G2 | 2300x 900x1250 | 824 | Download |
| A-C100H | 100 | 80 | 90 | 72 | 4BTA3.9-G11 | 2300x 900x1250 | 980 | Download |
| A-C125H | 125 | 100 | 114 | 91 | 6BT5.9-G2 | 2900×1080×1500 | 1185 | Download |
| A-C150H | 150 | 120 | 136 | 109 | 6BTA5.9-G2 | 2900×1080×1500 | 1185 | Download |
| A-C165H | 165 | 132 | 150 | 120 | 6BTAA5.9-G2 | 3200×1080×1500 | 1185 | Download |
| A-C188H | 188 | 150 | 170 | 136 | 6BTAA5.9-G12 | 3200×1080×1500 | 1300 | Download |
| A-C220H | 220 | 200 | 200 | 160 | 6CTA8.3-G2 | 3200×1080×1500 | 1550 | Download |
| A-C250H | 250 | 200 | 227 | 182 | 6CTAA8.3-G2 | 3500×1140×1700 | 1700 | Download |
| A-C275H | 275 | 220 | N/A | N/A | NT855-GA | 3900×1300×1900 | 2800 | Download |
| A-C300H | 300 | 240 | 273 | 218 | 6LTAA8.9-G2 | 3500×1140×1700 | 2200 | Download |
| A-C344H | 344 | 275 | 313 | 250 | NTA855-G1 | 3900×1300×1900 | 2900 | Download |
| A-C316H | 316 | 253 | 288 | 230 | 6LTAA8.9-G3 | 3500×1140×1700 | 2250 | Download |
| A-C330H | 330 | 264 | 300 | 240 | 6LTAA9.5-G3 | 3500×1126×1700 | 2500 | Download |
| A-C375H | 375 | 300 | 344 | 275 | NTA855-G1B | 3900×1300×1900 | 2950 | Download |
| A-C375H-1 | 375 | 300 | 344 | 275 | NTA855-G2 | 3900×1300×1900 | 2950 | Download |
| A-C347H | 347 | 277 | 315 | 252 | 6LTAA9.5-G1 | 3500×1126×1700 | 2640 | Download |
| A-C438H | 438 | 350 | 398 | 318 | NTA855-G3 | 3900×1300×1900 | 2950 | Download |
| A-C424H | 424 | 339 | 386 | 309 | 6ZTAA13-G3 | 3500×1126×1700 | 3220 | Download |
| A-C445H | 445 | 356 | 405 | 324 | QSZ13-G6 | 4700×1800×2380 | 3140 | Download |
| A-C481H | 481 | 385 | 438 | 350 | KTA19-G2 | 4700×1800×2380 | 2900 | Download |
| A-C487H | 487 | 389 | 443 | 354 | 6ZTAA13-G2 | 3500×1126×1700 | 3220 | Download |
| A-C500H | 500 | 400 | 455 | 364 | 6ZTAA13-G4 | 3500×1126×1700 | 3220 | Download |
| A-C500H-1 | 500 | 400 | 455 | 364 | QSZ13-G2 | 4700×1800×2380 | 3220 | Download |
| A-C511H | 511 | 409 | 465 | 372 | QSZ13-G7 | 4700×1800×2380 | 3220 | Download |
| A-C564H | 564 | 451 | 512 | 410 | KTA19-G3 | 4700×1800×2380 | 2900 | Download |
| A-C563H | 563 | 450 | 511 | 409 | QSZ13-G5 | 4700×1800×2380 | 3220 | Download |
| A-C563H-1 | 563 | 450 | 511 | 409 | QSZ13-G3 | 4700×1800×2380 | 3220 | Download |
| A-C625H | 625 | 500 | 568 | 455 | KTA19-G3A | 4700×1800×2380 | 4250 | Download |
| A-C618H-1 | 618 | 495 | 562 | 450 | KTA19-G4 | 4700×1800×2380 | 4300 | Download |
| A-C660H | 660 | 528 | 600 | 480 | KTAA19-G5 | 4700×1800×2380 | 4550 | Download |
| A-C750H | 750 | 600 | N/A | N/A | KTAA19-G6A | 4700×1800×2380 | 4550 | Download |
| A-C850H | 850 | 680 | 775 | 620 | KT38-G | 6050×2438×2591 | 6000 | Download |
| A-C963H | 963 | 770 | 875 | 700 | KTA38-G1 | 6050×2438×2591 | 6150 | Download |
| A-C1000H | 1000 | 800 | 909 | 727 | KTA38-G2 | 6050×2438×2591 | 6600 | Download |
| A-C1031H | 1031 | 825 | 938 | 750 | KTA38-G2B | 6050×2438×2591 | 6700 | Download |
| A-C1100H | 1100 | 880 | 1000 | 800 | KTA38-G2A | 6050×2438×2591 | 6850 | Download |
| A-C1250H | 1250 | 1000 | 1136 | 909 | KTA38-G4 | 6050×2438×2591 | 7150 | Download |
| A-C1525H | 1525 | 1220 | N/A | N/A | KTA38-G9 | 6050×2438×2591 | 7250 | Download |
| A-C1513H | 1513 | 1210 | 1375 | 1100 | KTA50-G3 | 12192×2438×2591 | 9140 | Download |
| A-C1733H | 1733 | 1386 | 1575 | 1260 | KTA50-G9 | 12192×2438×2591 | 9400 | Download |
ATS
ATS cabinet is mainly applied to the automatic switch between prime and emergency power, composing an automatic emergency power supply system together with diesel generating sets. It will monitor prime power, When it is cut off, it can automatically switch loads such as emergency illumination, security power and fire fighting equipment to generating sets. Auto start, auto transfer, auto protection, auto power supply
Standard configuration:
Brand: ABB, Schneider, Socome, Suyang, AISIKAI
PARALLEL DISTRIBUTION CABINET
Parallel distribution cabinet is designed for the parallel running of main power diesel generator sets. The system can operate automatically or be controlled manually.
The system has the functions of automatic frequency detection, synchronizing detection and switch-on.
It is convenient to expand the capacity to satisfy the need of increasing load.
It can be used together with multiple generating sets (32 parallel generating sets max.) to control multiple diesel generating sets for automatic synchronization.
It offers stable frequency and voltage and can bear large-capacity load impact, achieving reliable supply, centralized management and more flexible power allocation.
Load Bank
The purpose of most land banks is used to test of the emergency generator sets, verifying all genset components are in optimal working condition under different loads. Another purpose is working combined with the generator set, to take the load of the generator set is always above 30%
Advantages of Load Bank
Four types of load banks are usually used to genset.
Cummins Generator applied to Farm and rail-way station.
