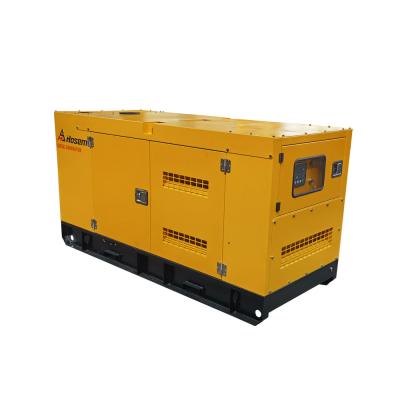

Hosem 60Hz 25kVA/ 20kW diesel generator set powered by well-known engine brand Isuzu, model JE493DB-03

GENERATOR FEATURES:

Generator engine brand: Isuzu

Generator engine model: JE493DB-03

RPM: 1800

Alternator brand: Stamford

Engine Features: 4 cylinders, water-cooled, 4 stroke

Voltage: 3Phase 240V or single phase 120/240V

Weather Resistant Enclosure for optional

1. Output range: from 15kVA up to 113kVA(50Hz), 20kVA up to 125kVA(60Hz)
2. Engine models: JE493DB-03, JE493DB-01, JE493ZDB-03, JE493ZLDB-01.
3.  Alternator: Stamford, Marathon, Leroy Somer, Mecc Alte, and Chinese brands with brushless and "H" Class Insulation.
4. 8hrs operation base tank
5. Key start (power switch) / autostart
6. Open type / sound-proof / weather-proof canopy / mobile type are optional
7. 50Hz / 60Hz, 0.8 PF 1-phase/ 3-phase

Powered by Isuzu, low fuel consuption and Fuel-efficient

Complete generator with ISO and CE certificate

Range 20KVA-110KVA, perfect performance on power continuous output, emission control, fuel consumption cost, vibration etc.

The controller has complete functions. If high temperature, high speed, overload, etc. occur, the generator set will automatically stop working to ensure that you can use it safely.

8 hours working time fuel tank, solve your problem of frequent refueling

1. Output range: from 15kVA up to 113kVA(50Hz), 20kVA up to 125kVA(60Hz)
2. Engine models: JE493DB-03, JE493DB-01, JE493ZDB-03, JE493ZLDB-01, Produced by Japanese Isuzu joint venture in China
3.  Alternator: Stamford, Marathon, Leroy Somer, Mecc Alte, and Chinese brands with brushless and "H" Class Insulation.
4. 8hrs operation base tank
5. Key start (power switch) / autostart
6. Open type / sound-proof / weather-proof canopy / mobile type are optional
7. 50Hz / 60Hz, 0.8 PF 1-phase/ 3-phase

Configuration:

1. Engine: Isuzu
2. Alternator: Stamford
3. Power Output: 20kVA, 25kVA, 30kVA, 38kVA, 50kVA.
4. Control Panel: Deeosea
5. Safety Features: Low oil pressure shutdown and overload protection for enhanced safety and generator protection.
6. Fuel Tank: 8 hours runtime.
7. Noise Level: 70-72dB(A) @ 7 Meters

Standard Configuration:

1. Engine: JE493DB-02 with natural aspiration, known for its reliability and efficiency (Isuzu Datasheet Download)
2. Alternator: High-quality alternator for stable voltage output and reliable performance, Copper coil.
3. Power Output: 25kVA prime power rating for consistent and dependable electricity supply.
4. Control Panel: Smartgen or Deepsea brand, user-friendly control panel with clear displays for easy operation and monitoring of key parameters.
5. Safety Features: Low oil pressure shutdown and overload protection for enhanced safety and generator protection.
6. Fuel Tank: Built-in fuel tank with adequate capacity for 8 hours runtime.
7. Noise Level: Soundproof enclosure and muffler system to minimize noise levels at 70dB @ 7 Meters
8. Maintenance Accessibility: Convenient access points for easy maintenance and serviceability.
9. Compact and Durable Design: Compact size for space-saving installation, and durable construction for long-lasting performance.

Isuzu 25kVA Diesel Generator Set Specifciation Download

Engine Model: JE493ZDB-04

Engine Type: 4-cylinder inline, four-stroke

Displacement: 2.77 liters

Bore and Stroke: 93 mm x 102 mm

Cooling System: Water-cooled

Turbocharger: Yes

Aftercooler: No

Governing System: mechanical governor

Starting System: Electric start

Alternator Type: Brushless, self-excited

Control Panel: Deepsea/ Smartgen

Voltage Regulation: Automatic voltage regulation (AVR)

Enclosure: Soundproof or weatherproof enclosure (optional)

Fuel Tank: Integrated fuel tank (optional)

30kVA Isuzu Specification Download
