1. Powered by Cummins G-drive engine,
1) Water cooling, 4 stroke, 6 cylinders
2) Radiation with water tank & fan & safeguard
3. Alternator: Original Stamford/Marathon (Made in China) or Hosem Brushless Alternator
1) Single bearing, 4pole, and self-excited brushless.
2) Insulation --H class, Protection -- IP22 (IP23 in marine)
3) AVR(auto voltage regulation)
Control System: Key starting, Auto control panel, Remote control panel, ATS(Auto transfer switch)
Payment:
TT/LCProduct origin:
ChinaLead Time:
35days

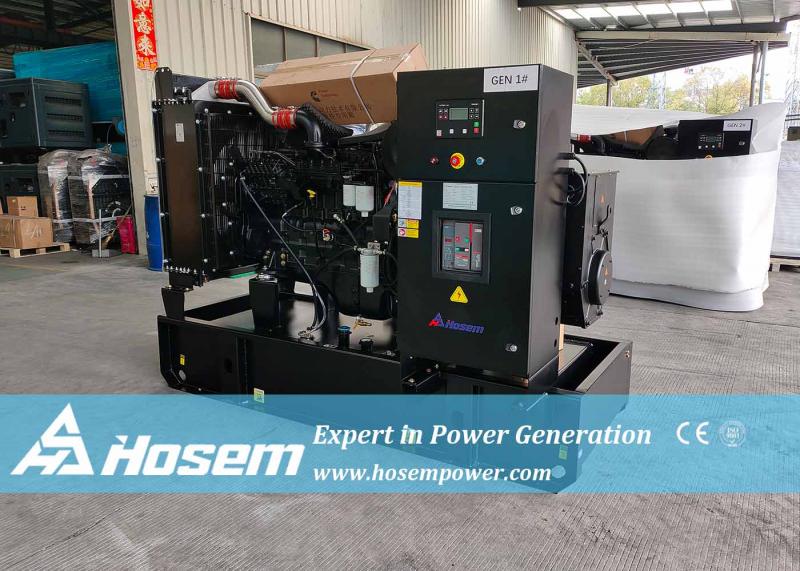

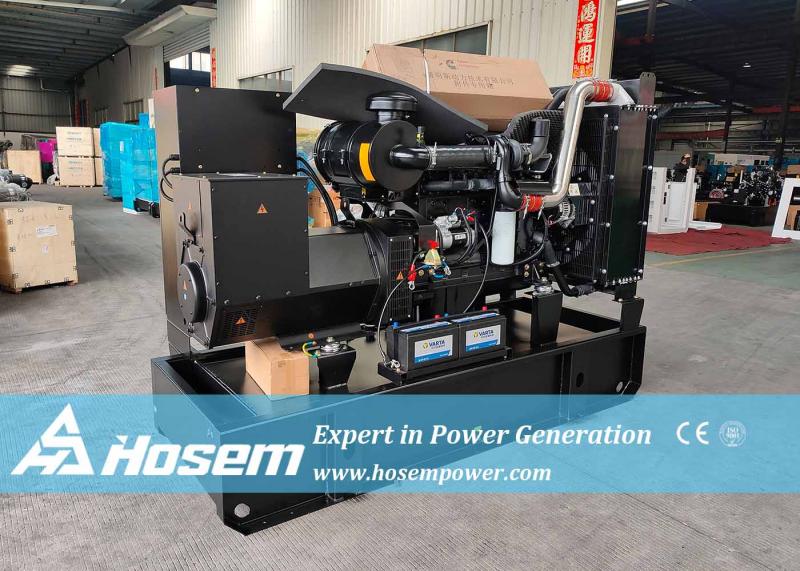

The 180kVA Cummins Generator is a robust and reliable power solution, designed to meet the demands of a wide range of applications. Powered by a high-performance Cummins engine 6CTA8.3-G2, this generator offers excellent fuel efficiency, low emissions, and consistent power output. It is equipped with a heavy-duty alternator that ensures reliable performance even in challenging conditions.
Key features include a durable soundproof enclosure for quiet operation, a high-capacity fuel tank for extended runtimes, and advanced safety and protection features, including overload, short circuit, and low oil pressure alarms. The 180kVA generator also boasts an efficient cooling system, making it suitable for both open and silent installations.
| Generator Set Specification | ||
| Model | A-C200 | |
| Max. Power | kVA | 200 |
| kW | 160 | |
| Rate Power | kVA | 180 |
| kW | 144 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 259.8 |
| Fuel Tank Capacity | L | 250 |
| Dimension For Open-type Genset | mm | 2654 X 1156 X 1595 |
| Weight For Open-type Genset | kg | 1500 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 2200 |
| Noise Level for Soundproof Generator at 7M | dBA | 78 |
| Battery | Two of 100Amps Free Maintenance Battery | |
| Engine Specification | ||
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
| Engine Brand | Cummins | |
| Engine Model | 6CTA8.3G2 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged & Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 179.3 |
| Displacement | L | 8.3 |
| Compression Ratio | 17.3 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 114 |
| Stroke | mm | 135 |
| Lubrication Oil Capacity | L | 20 |
| Intake Air Flow | L/S | 192 |
| Fuel Consumption at 100% Load | L/H | 42 |
• Silence enclosure with thickness 2mm, triple powder coating, IR oven-cured paint. Stainless door lock and hinge
• Alternator excitation system: self-excited (AREP and PMG are optional)
• Maintainceless batteries with VARTA brand, and city power charger.
• Lockable battery isolator switch
• Vibration isolators between the engine/alternator and base frame
• Integrated wiring design
• Base fuel tank for at least 8 hours running
• Equipped with an industrial muffler
• 40℃ radiator (Silent Type), 50℃ radiator (Silent Type)
• Top lifting and steel base frame with forklift holes
• Drainage for fuel tank
• Complete protection functions and safety labels
• ATS (automatic transfer switch) receptacle
• Remote control system
• Virtual load cabinet
• Stainless galvanized zinc plates with strong corrosion resistance
• Water jacket preheater, oil heater and double air cleaner, etc.
Why Choose Hosem Power?
1. Hosem Power engaged in the generator area for 15 years, we have rich experience in R&D and manufacturing generator sets.
2. Every generator will be tested strictly before shipment, including:
1) Parts faults testing
2) Fuel tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insulation testing
6) Noise testing
7) Loading Testing: 25%, 50%, 75%, 100%, 110% load to check verify that all control systems, alarm and shut-down protection.
3. production is submitted to ISO8528 and CE certification, and quality is certified by ISO9001 Management System to guarantee high-quality products and service.
FAQ
Q: What's your warranty?
A: All our products we offer one year warranty or 1000 hours which comes first.
Q: What's your delivery time?
A: Standard product 20 days - 35 days. Customized product 40 days.
Q: Can we add our logo to products?
A: Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q: Can we customize the product?
A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system
Q: What certifications are for your gen sets?
A: ISO9001-2008, ISO14001-2004, CE, SASO, SONCAP, RETIE, etc.
| Model | Standby Power | Prime Power | Engine Model | Dimension (Open Type) | Weight | Datasheet | ||
| kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
| A-C22-1 | 22 | 18 | 20 | 16 | 4B3.9-G1 | 1770x830x1050 | 880 | Download |
| A-C22-2 | 22 | 18 | 20 | 16 | 4B3.9-G2 | 1770x830x1050 | 880 | Download |
| A-C28-1 | 28 | 22 | 25 | 20 | 4B3.9-G1 | 1770x830x1050 | 920 | Download |
| A-C28-2 | 28 | 22 | 25 | 20 | 4B3.9-G2 | 1770x830x1050 | 920 | Download |
| A-C44-1 | 44 | 35 | 40 | 32 | 4BT3.9-G1 | 1770x830x1050 | 950 | Download |
| A-C44-2 | 44 | 35 | 40 | 32 | 4BT3.9-G2 | 1770x830x1050 | 950 | Download |
| A-C55 | 50 | 40 | 55 | 50 | 4BT3.9-G2 | 1770x830x1050 | 980 | Download |
| A-C60 | 60 | 50 | 55 | 45 | 4BTA3.9-G2 | 1820x830x1050 | 980 | Download |
| A-C72 | 72 | 57 | 65 | 52 | 4BTA3.9-G2 | 1820x830x1050 | 1050 | Download |
| A-C88 | 88 | 70 | 80 | 63 | 4BTA3.9-G11 | 1820x830x1050 | 1080 | Download |
| A-C100 | 100 | 77 | 90 | 70 | QSB3.9-G3 | 1820x830x1050 | 1080 | Download |
| A-C110-1 | 110 | 88 | 100 | 80 | 6BT5.9-G1 | 2180x830x1200 | 1200 | Download |
| A-C110-2 | 110 | 88 | 100 | 80 | 6BT5.9-G2 | 2180x830x1200 | 1250 | Download |
| A-C121 | 121 | 96 | 110 | 87 | 6BT5.9-G2 | 2180x830x1200 | 1300 | Download |
| A-C138 | 138 | 110 | 125 | 100 | 6BTA5.9-G2 | 2300x830x1450 | 1330 | Download |
| A-C150-1 | 150 | 119 | 136 | 109 | QSB5.9-G3 | 2300x830x1450 | 1350 | Download |
| A-C150-2 | 150 | 119 | 136 | 109 | 6BTAA5.9-G2 | 2300x830x1450 | 1350 | Download |
| A-C175 | 175 | 140 | 160 | 127 | 6BTAA5.9-G12 | 2300x830x1450 | 1400 | Download |
| A-C203-1 | 203 | 163 | 185 | 148 | 6CTA8.3-G1 | 2654x1156x1595 | 1500 | Download |
| A-C203-2 | 203 | 163 | 185 | 148 | 6CTA8.3-G2 | 2654x1156x1595 | 1500 | Download |
| A-C210 | 210 | 167 | 190 | 152 | QSB6.7-G4 | 2654x1156x1595 | 1650 | Download |
| A-C228 | 228 | 182 | 207 | 166 | 6CTAA8.3-G2 | 2654x1156x1595 | 1600 | Download |
| A-C275-1 | 275 | 220 | 250 | 200 | MTA11-G2A | 3315x1100x1650 | 2950 | Download |
| A-C275-2 | 275 | 220 | 250 | 200 | MTA11-G2 | 3315x1100x1650 | 2950 | Download |
| A-C275-3 | 275 | 220 | 250 | 200 | NTA855-G1 | 3315x1100x1650 | 2950 | Download |
| A-C275-4 | 275 | 220 | 250 | 200 | 6LTAA8.9-G2 | 2654x1156x1595 | 1750 | Download |
| A-C286 | 286 | 229 | 260 | 208 | 6LTAA8.9-G3 | 2654x1156x1595 | 1800 | Download |
| A-C290 | 290 | 232 | 260 | 208 | QSL8.9-G4 | 2654x1156x1595 | 1900 | Download |
| A-C300 | 300 | 240 | 275 | 220 | NTA855-G1A | 3315x1100x1650 | 2950 | Download |
| A-C312 | 312 | 250 | 284 | 227 | 6LTAA9.5-G3 | 3000x1115x1880 | 2940 | Download |
| A-C344-1 | 344 | 275 | 313 | 250 | MTAA11-G3 | 3315x1100x1650 | 2950 | Download |
| A-C350 | 350 | 280 | 313 | 250 | NTA855-G1B | 3315x1100x1650 | 2950 | Download |
| A-C344-3 | 344 | 275 | 313 | 250 | NTA855-G2 | 3315x1100x1650 | 2950 | Download |
| A-C344-4 | 344 | 275 | 313 | 250 | 6LTAA9.5-G1 | 3000x1115x1880 | 3050 | Download |
| A-C378 | 378 | 302 | 343 | 275 | NTA855-G2A | 3315x1100x1650 | 3150 | Download |
| A-C385 | 385 | 308 | 350 | 280 | NTA855-G4 | 3315x1100x1650 | 3150 | Download |
| A-C408 | 408 | 326 | 370 | 296 | QSZ13-G6 | 3000x1115x1880 | 3200 | Download |
| A-C413-1 | 413 | 330 | 375 | 300 | NTAA855-G7 | 3315x1100x1650 | 3250 | Download |
| A-C413-2 | 413 | 330 | 375 | 300 | KTA19-G2 | 3580x1450x 2160 | 3250 | Download |
| A-C424-1 | 424 | 340 | 385 | 310 | 6ZTAA13-G3 | 3300x970x1650 | 3450 | Download |
| A-C424-2 | 424 | 340 | 385 | 310 | 6ZTAA13-G3 | 3300x970x1650 | 3450 | Download |
| A-C450 | 450 | 360 | N/A | N/A | NTAA855-G7A | 3315x1100x1650 | 3500 | Download |
| A-C456 | 456 | 365 | 415 | 332 | QSZ13-G7 | 3000x1115x1880 | 3500 | Download |
| A-C484 | 484 | 387 | 440 | 352 | 6ZTAA13-G2 | 3300x970x1650 | 4000 | Download |
| A-C495-1 | 495 | 396 | 450 | 360 | KTA19-G3 | 3580x1450x 2160 | 4000 | Download |
| A-C495-2 | 495 | 396 | 450 | 360 | 6ZTAA13-G4 | 3300x970x1650 | 4000 | Download |
| A-C495-3 | 495 | 396 | 450 | 360 | QSZ13-G2 | 3000x1115x1880 | 4000 | Download |
| A-C511 | 511 | 409 | 465 | 372 | QSZ13-G5 | 3000x1115x1880 | 4000 | Download |
| A-C550-1 | 550 | 440 | 500 | 400 | KTA19-G3A | 3580x1450x 2160 | 4200 | Download |
| A-C550-2 | 550 | 440 | 500 | 400 | KTA19-G4 | 3580x1450x 2160 | 4200 | Download |
| A-C560 | 560 | 448 | 510 | 408 | QSZ13-G3 | 3000x1115x1880 | 4000 | Download |
| A-C575 | 575 | 462 | 525 | 420 | KTAA19-G5 | 3580x1450x 2160 | 4200 | Download |
| A-C633 | 633 | 506 | 575 | 460 | KTAA19-G6 | 3580x1450x 2160 | 4800 | Download |
| A-C650 | 650 | 520 | N/A | N/A | KTA19-G8 | 3580x1450x 2160 | 4800 | Download |
| A-C688-1 | 688 | 550 | N/A | N/A | KTAA19-G6A | 3580x1450x 2160 | 4800 | Download |
| A-C688-2 | 687 | 550 | 625 | 500 | KT38-G | 4350x1850x2400 | 7350 | Download |
| A-C784 | 784 | 627 | 713 | 570 | KTA38-G1 | 4350x1850x2400 | 7650 | Download |
| A-C800 | 800 | 640 | 725 | 580 | KT38-GA | 4350x1850x2400 | 7850 | Download |
| A-C825 | 825 | 660 | 750 | 600 | KTA38-G2 | 4350x1850x2400 | 7850 | Download |
| A-C880 | 880 | 704 | 800 | 640 | KTA38-G2B | 4350x1850x2400 | 7850 | Download |
| A-C1000 | 1000 | 800 | 910 | 728 | KTA38-G2A | 4350x1850x2400 | 7850 | Download |
| A-C1100 | 1100 | 880 | 1000 | 800 | KTA38-G5 | 4350x1850x2400 | 7850 | Download |
| A-C1250 | 1250 | 1000 | N/A | N/A | KTA38-G9 | 4350x1850x2400 | 8150 | Download |
| A-C1375 | 1375 | 1100 | 1250 | 1000 | KTA50-G3 | 5200 X 1920 X 2379 | 10800 | Download |
| A-C1513 | 1513 | 1210 | 1375 | 1100 | KTA50-G8 | 5200 X 1920 X 2379 | 10800 | Download |
| A-C1650 | 1650 | 1320 | 1500 | 1200 | KTA50-GS8 | 5200 X 1920 X 2379 | 10800 | Download |
| Model | Standby Power | Prime Power | Engine Model | Dimension (Open Type) | Weight | Datasheet | ||
| kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
| A-C25H | 25 | 20 | 23 | 18 | 4B3.9-G2 | 1770x830x1050 | 880 | Download |
| A-C38H | 38 | 30 | 34 | 27 | 4BT3.9-G2 | 1770x830x1050 | 880 | Download |
| A-C50H | 50 | 40 | 45 | 36 | 4BT3.9-G2 | 1770x830x1050 | 920 | Download |
| A-C60H | 60 | 48 | 55 | 44 | 4BTA3.9-G2 | 1770x830x1050 | 920 | Download |
| A-C75H | 75 | 60 | 68 | 55 | 4BTA3.9-G2 | 1770x830x1050 | 950 | Download |
| A-C100H | 100 | 80 | 90 | 72 | 4BTA3.9-G11 | 1770x830x1050 | 1050 | Download |
| A-C125H | 125 | 100 | 114 | 91 | 6BT5.9-G2 | 2180x830x1200 | 1200 | Download |
| A-C143H | 143 | 115 | 130 | 104 | 6BTA5.9-G2 | 2180x830x1200 | 1250 | Download |
| A-C165H | 165 | 132 | 150 | 120 | 6BTAA5.9-G2 | 2180x830x1200 | 1300 | Download |
| A-C188H | 188 | 150 | 170 | 136 | 6BTAA5.9-G12 | 2180x830x1200 | 1350 | Download |
| A-C206H | 206 | 165 | 188 | 150 | 6CTA8.3-G2 | 2654x1156x1595 | 1500 | Download |
| A-C238H | 238 | 190 | 216 | 173 | 6CTAA8.3-G2 | 2654x1156x1595 | 1550 | Download |
| A-C275H | 275 | 220 | N/A | N/A | NT855-GA | 3315x1100x1650 | 2500 | Download |
| A-C290H | 290 | 233 | 265 | 212 | 6LTAA8.9-G2 | 2654x1156x1595 | 1750 | Download |
| A-C344H | 344 | 275 | 313 | 250 | NTA855-G1 | 3315x1100x1650 | 2450 | Download |
| A-C316H | 316 | 253 | 288 | 230 | 6LTAA8.9-G3 | 2654x1156x1595 | 1750 | Download |
| A-C330H | 330 | 264 | 300 | 240 | 6LTAA9.5-G3 | 3000x1115x1880 | 1850 | Download |
| A-C375H | 375 | 300 | 344 | 275 | NTA855-G1B | 3315x1100x1650 | 2500 | Download |
| A-C375H-1 | 375 | 300 | 344 | 275 | NTA855-G2 | 3315x1100x1650 | 2550 | Download |
| A-C347H | 347 | 277 | 315 | 252 | 6LTAA9.5-G1 | 3000x1115x1880 | 3650 | Download |
| A-C438H | 438 | 350 | 398 | 318 | NTA855-G3 | 3315x1100x1650 | 2650 | Download |
| A-C424H | 424 | 339 | 386 | 309 | 6ZTAA13-G3 | 3300x970x1650 | 3600 | Download |
| A-C445H | 445 | 356 | 405 | 324 | QSZ13-G6 | 3000x1115x1880 | 4000 | Download |
| A-C481H | 481 | 385 | 438 | 350 | KTA19-G2 | 3580x1450x2160 | 4000 | Download |
| A-C487H | 487 | 389 | 443 | 354 | 6ZTAA13-G2 | 3300x970x1650 | 3800 | Download |
| A-C500H | 500 | 400 | 455 | 364 | 6ZTAA13-G4 | 3300x970x1650 | 3800 | Download |
| A-C500H-1 | 500 | 400 | 455 | 364 | QSZ13-G2 | 3000x1115x1880 | 4000 | Download |
| A-C511H | 511 | 409 | 465 | 372 | QSZ13-G7 | 3000x1115x1880 | 4000 | Download |
| A-C564H | 564 | 451 | 512 | 410 | KTA19-G3 | 3580x1450x 2160 | 4200 | Download |
| A-C563H | 563 | 450 | 511 | 409 | QSZ13-G5 | 3000x1115x1880 | 4000 | Download |
| A-C563H-1 | 563 | 450 | 511 | 409 | QSZ13-G3 | 3000x1115x1880 | 4000 | Download |
| A-C618H | 618 | 495 | 562 | 450 | KTA19-G3A | 3580x1450x2160 | 4200 | Download |
| A-C618H-1 | 618 | 495 | 562 | 450 | KTA19-G4 | 3580x1450x2160 | 4800 | Download |
| A-C646H | 646 | 517 | 587 | 470 | KTAA19-G5 | 3580x1450x2160 | 4800 | Download |
| A-C750H | 750 | 600 | N/A | N/A | KTAA19-G6A | 3580x1450x2160 | 4800 | Download |
| A-C850H | 850 | 680 | 775 | 620 | KT38-G | 4350x1850x2400 | 7650 | Download |
| A-C963H | 963 | 770 | 875 | 700 | KTA38-G1 | 4350x1850x2400 | 7650 | Download |
| A-C997H | 997 | 798 | 906 | 725 | KTA38-G2 | 4350x1850x2400 | 7650 | Download |
| A-C1031H | 1031 | 825 | 938 | 750 | KTA38-G2B | 4350x1850x2400 | 7850 | Download |
| A-C1100H | 1100 | 880 | 1000 | 800 | KTA38-G2A | 4350x1850x2400 | 7850 | Download |
| A-C1238H | 1238 | 990 | 1125 | 900 | KTA38-G4 | 4350x1850x2400 | 7850 | Download |
| A-C1525H | 1525 | 1220 | N/A | N/A | KTA38-G9 | 4350x1850x2400 | 8150 | Download |
| A-C1513H | 1513 | 1210 | 1375 | 1100 | KTA50-G3 | 5200 X 1920 X 2379 | 10800 | Download |
| A-C1733H | 1733 | 1386 | 1575 | 1260 | KTA50-G9 | 5200 X 1920 X 2379 | 10800 | Download |
ATS
ATS cabinet is mainly applied to the automatic switch between prime and emergency power, composing an automatic emergency power supply system together with diesel generating sets. It will monitor prime power, When it is cut off, it can automatically switch loads such as emergency illumination, security power and fire fighting equipment to generating sets. Auto start, auto transfer, auto protection, auto power supply
Standard configuration:
Brand: ABB, Schneider, Socome, Suyang, AISIKAI
PARALLEL DISTRIBUTION CABINET
Parallel distribution cabinet is designed for the parallel running of main power diesel generator sets. The system can operate automatically or be controlled manually.
The system has the functions of automatic frequency detection, synchronizing detection and switch-on.
It is convenient to expand the capacity to satisfy the need of increasing load.
It can be used together with multiple generating sets (32 parallel generating sets max.) to control multiple diesel generating sets for automatic synchronization.
It offers stable frequency and voltage and can bear large-capacity load impact, achieving reliable supply, centralized management and more flexible power allocation.
Load Bank
The purpose of most land banks is used to test of the emergency generator sets, verifying all genset components are in optimal working condition under different loads. Another purpose is working combined with the generator set, to take the load of the generator set is always above 30%
Advantages of Load Bank
Three types of load banks are usually used to genset.
Tel : +86-591-86397381
Email : sale@hosempower.com
Whatsapp ：+8613205904365
Address : C2 Building, Cangshan Wanda Plaza, No. 216 Pushang Road, Fuzhou City, Fujian, China.
Friendly Links :
Anern Power Transmission Tower silent axial fan Wholesale catflo Lobe pump Sunforson China Generator Manufacturer Cndnewenergy Screw Air Compressor Vacuum High and Low Temperature Motors Shuttering MagnetCopyright © 2025 Fuzhou Hosem Power Co., Ltd. All Rights Reserved
IPv6 network supported
