Standard Configuration
√ Water Cooling Exhaust Pipe and Smoke Water Mixer
√ Local Contoller and 20M Remote Controller
√ 12V Electrical System
√ With Heat Exchanger and Rubber Impeller Sea Water Pump

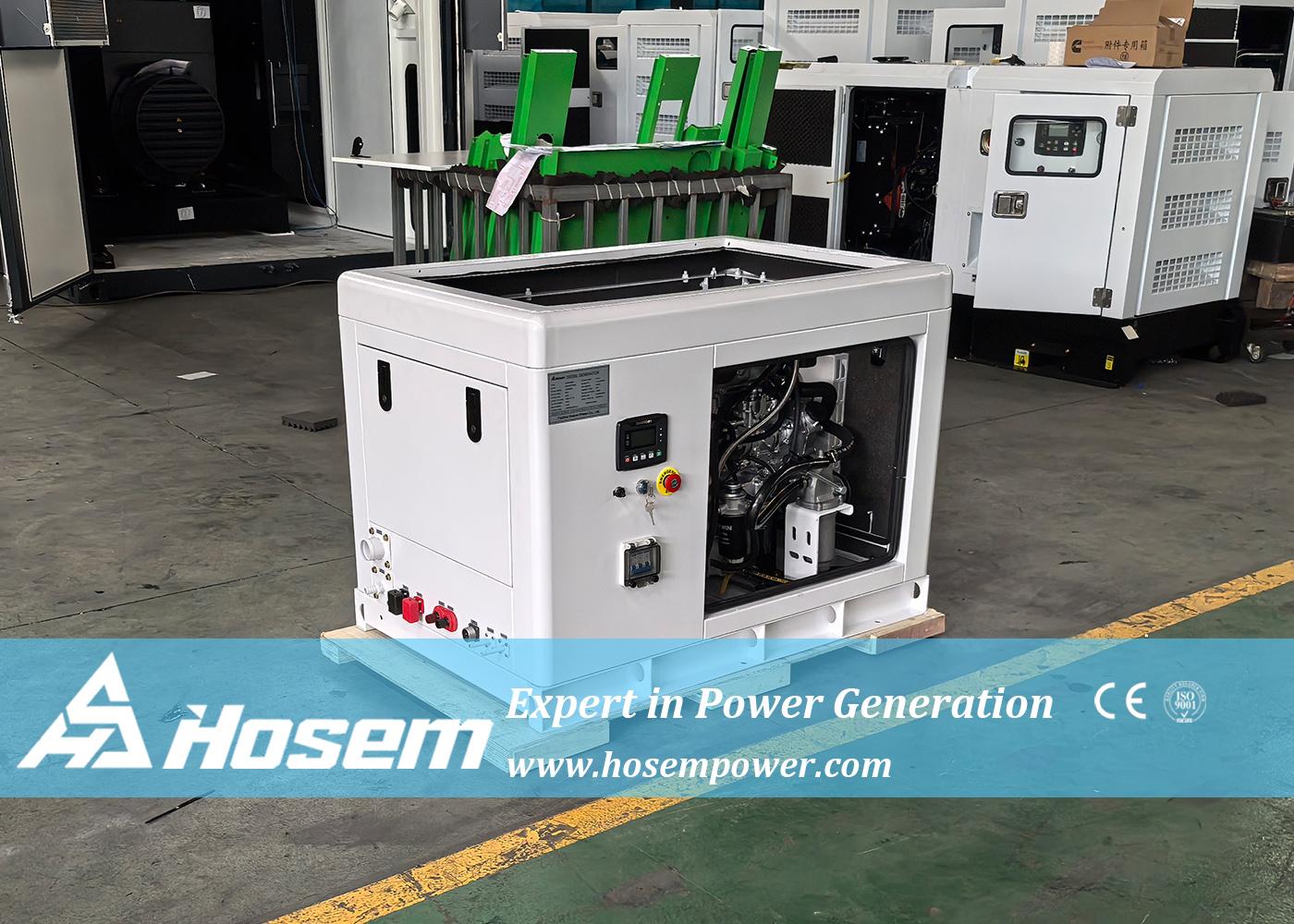

Marine Silent 10kW AC Generator | Water-cooled Engine
Key Features:
Ultra-Quiet Operation:

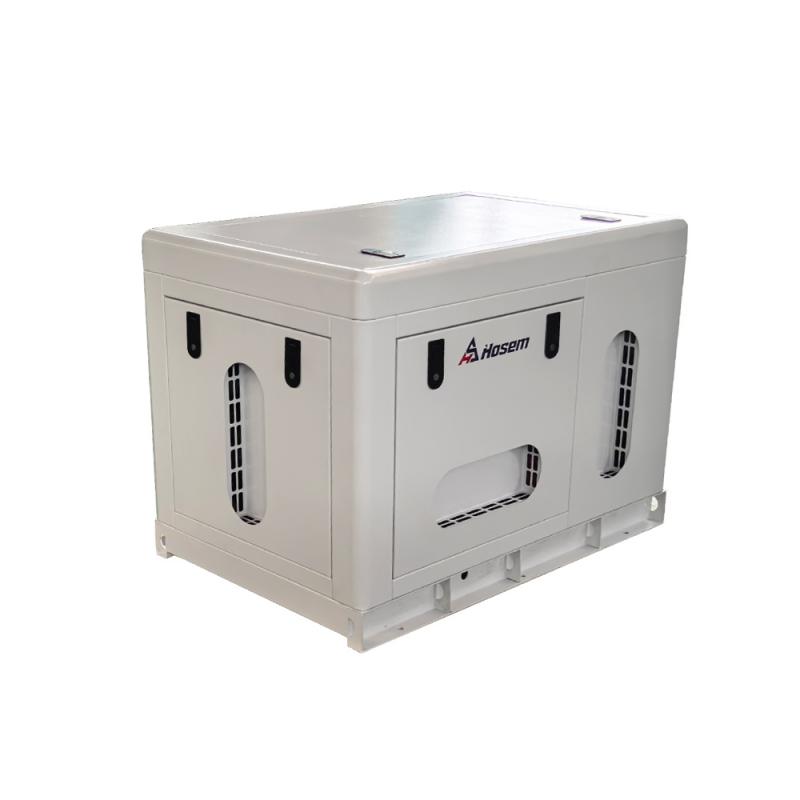

- Complete generator set with soundproof enclosure, there is sound absorbed cotton in the side, that licit the significant sound reduced, the noise level is 70dB at 7 M
Compact and Efficient Design:

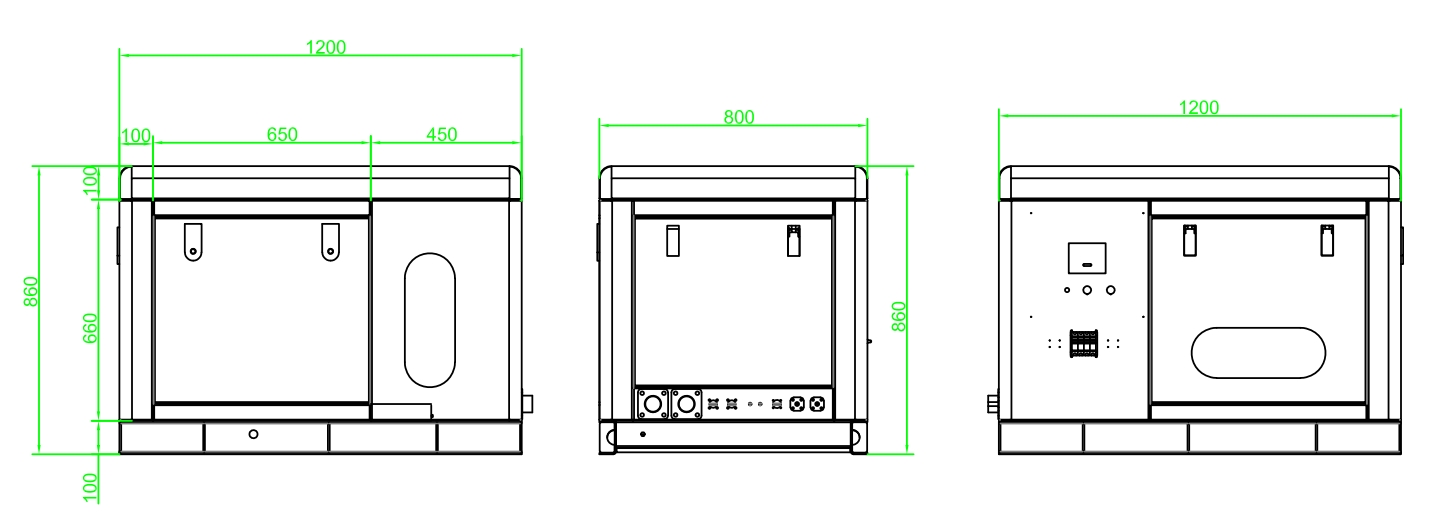

- The compact size of our marine generators allows for easy installation in tight spaces on your yacht. the overall dimension is below
Reliable Power Source:

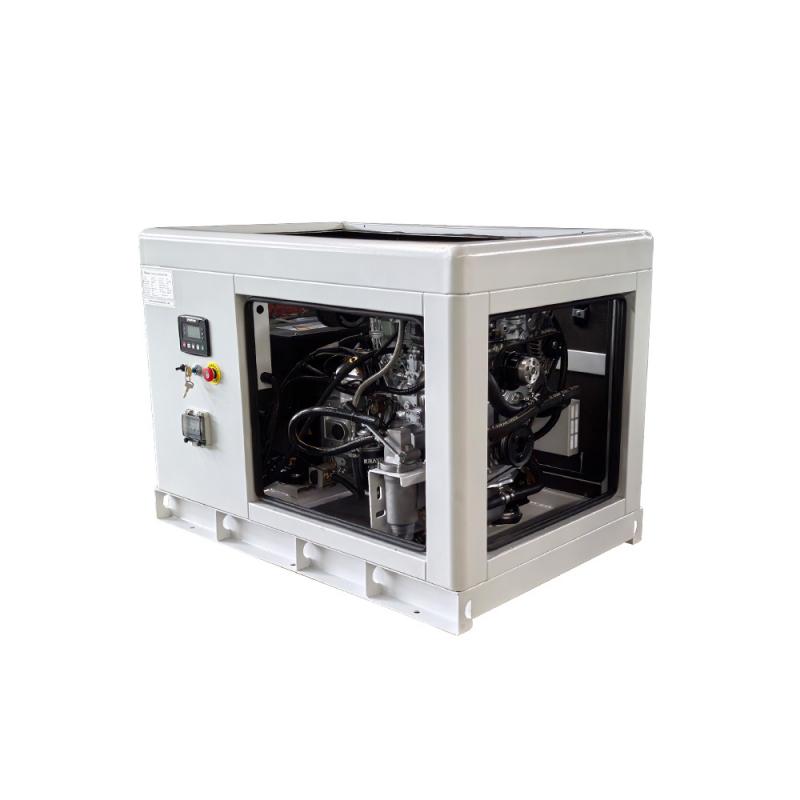

- Powered by a top-tier water-cooled diesel engine, 4 stroke, 3 cylinders. Complete engine cooled through the heat exchanger, with wet exhaust manifold. The generator is equipped with two controllers, one on the generator local, the other can be but at the bridge, you can easy monitor the running condition of the generator set in real-time. Generator set with complete protect system, include over heat protection, over speed protection, low oil pressure protection etc, make it easier for you to use it.
Versatile Applications:
- Whether you're cruising the open sea or docked at the marina, our soundproof marine generators provide the power you need for lighting, heating, cooling, and operating various onboard appliances.
Technical Specifications:
- Engine: Raywin brand water cooled 4 stoke engine, model 3M16G3
- Noise Level: 70dBA at 7M
- Control Panel: Smargen HGM4010
- Fuel Consumption: 3.6L/H
- Certification: CCS
Upgrade your yacht's power system with our reliable, efficient, and quiet marine generators. Contact us today to learn more about our soundproof marine generator solutions for yachts.
For inquiries:
Email: sale@hosempower.com
WhatsApp: +8613205904365
Model | A-RW19MS | A-RW23MS | A-RW29MS | A-RW31MS | A-RW38MS | |||||||
Rated Power (Genset) (kW) | 15 | 18 | 23 | 25 | 30 | |||||||
Dimension (LXWXH) (MM) | 1200X800X860 | 1200X800X860 | 1250X800X860 | 1250X800X860 | 1250X800X860 | |||||||
Weight (kg) | 440 | 460 | 480 | 500 | 520 | |||||||
Noise (dBA) | 72 | 72 | 72 | 72 | 72 | |||||||
Engine Model | 4D24G4/A | 4D24G2/A | 4D24TG2/A | 4D24TG1/A | 4D24TG0/A | |||||||
Rated Power (Engine) | 18.5 (kW) | 23 (kW) | 28 (kW) | 32 (kW) | 36 (kW) | |||||||
No. of Cylinder | 4 | 4 | 4 | 4 | 4 | |||||||
Injection | Naturally | Naturally | Turbo | Turbo | Turbo | |||||||
Emission | EU STAGE IIIA | EU STAGE IIIA | EU STAGE IIIA | EU STAGE IIIA | EU STAGE IIIA | |||||||
RPM | 1500 | 1500 | 1500 | 1500 | 1500 | |||||||
Cooling Method | Water Cooled | Water Cooled | Water Cooled | Water Cooled | Water Cooled | |||||||
Fuel Consumption (L) (Full Load) | 5.96 | 7.41 | 9.02 | 10.31 | 11.6 |
Model | A-RW11HMS | A-RW23HMS | A-RW26HMS | A-RW31HMS | A-RW38HMS | |||||||
Rated Power (Genset) (kW) | 8.5 | 18 | 21 | 25 | 30 | |||||||
Dimension (LXWXH) (MM) | 900X700X800 | 1200X800X860 | 1250X800X860 | 1250X800X860 | 1250X800X860 | |||||||
Weight (kg) | 350 | 460 | 480 | 500 | 520 | |||||||
Noise (dBA) | 68 | 72 | 72 | 72 | 72 | |||||||
Engine Model | 3C11G2/A | 4D24G3/A | 4D24G1/A | 4D24TG7/A | 4D24TG3/A | |||||||
Rated Power (Engine) | 11.1 (kW) | 22 (kW) | 27 (kW) | 32 (kW) | 36 (kW) | |||||||
No. of Cylinder | 3 | 4 | 4 | 4 | 4 | |||||||
Injection | Naturally | Naturally | Naturally | Turbo | Turbo | |||||||
Emission | EU STAGE IIIA | EU STAGE IIIA | EU STAGE IIIA | EU STAGE IIIA | EU STAGE IIIA | |||||||
RPM | 3000 | 1800 | 1800 | 1800 | 1800 | |||||||
Cooling Method | Water Cooled | Water Cooled | Water Cooled | Water Cooled | Water Cooled | |||||||
Fuel Consumption (L) (Full Load) | 5.96 | 7.09 | 8.7 | 10.3 | 11.9 |
